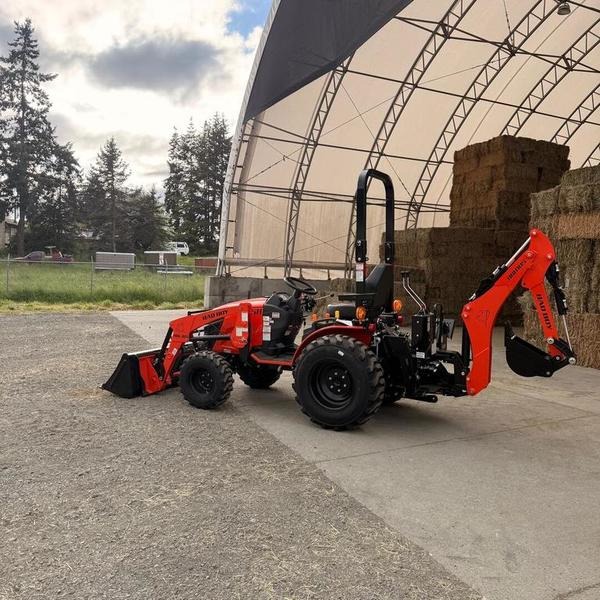

2026 Bad Boy 1025 HILB 25 HP Sub-Compact Tractor Loader Backhoe (TLB) For Sale — Sequim, WA & Olympic Peninsula

The new 2026 Bad Boy 1025 HILB 25 HP Sub-Compact Tractor Loader Backhoe (TLB Package) delivers complete commercial-style earthmoving, trenching, and lifting capability in an agile, gate-accessible footprint. Engineered for Pacific Northwest homeowners, small acreage estates, equestrian hobby farms, commercial landscapers, and residential gardeners, this versatile machine is available now at Leitz Farm Supply & Equipment Sales in Sequim, Washington. Powered by an industry-benchmark Yanmar 3-cylinder liquid-cooled diesel engine rated at 24.6 gross HP, the 1025 HILB pairs Bad Boy’s Hydro Max 2-range hydrostatic transmission (HST) and selectable 4WD with the high-capacity Bad Boy BBL105 Skid Steer Quick-Attach (SSQA) front loader and a dedicated, factory-integrated subframe quick-detach backhoe.

Most homeowners tackling excavation and ditching are forced to rent mini-excavators or settle for lightweight garden tractors with bolt-on accessories that twist light frames and lack hydraulic breakout power. The Bad Boy 1025 HILB solves this by building on a heavy-duty cast-iron and structural steel sub-compact chassis weighing approximately 1,610 lbs bare—scaling to over 2,800 lbs fully outfitted with the loader, subframe backhoe, and rear ballast. This solid ground-hugging mass provides the low center of gravity and planted balance required to dig through rocky glacial till, trench footing drains, and lift full buckets of crushed rock without chassis flex or front-axle float. Rated at 24.6 gross horsepower, this high-torque diesel is 100% exempt from Tier 4 Final DPF (diesel particulate filter) regeneration burn cycles and DEF fluid requirements—delivering zero exhaust downtime, zero burner filters to replace, and turn-key reliability in freezing coastal temperatures. For property managers across Clallam and Jefferson counties, the 1025 HILB delivers genuine commercial digging geometry, universal SSQA tool flexibility, and multi-implement property maintenance in a machine small enough to park in a standard garage. Every unit at Leitz Farm Supply includes a comprehensive factory pre-delivery inspection (PDI), 50-point hydraulic check, linkage calibration, fluids topped, and factory warranty backing from our certified Sequim dealership.

Proven Yanmar Diesel Power, Hydro Max HST & Subframe-Anchored Backhoe

• 24.6 Gross HP Yanmar 3-Cylinder Diesel Engine: Displacing 1.116 liters (68.1 cu. in.), this EPA-compliant liquid-cooled Yanmar industrial engine delivers quiet operation, low fuel consumption, and sustained low-end torque at 3,000 RPM. It operates completely free of complex Tier 4 DPF filters, catalytic soot burners, or DEF additives, eliminating costly regeneration interruptions and electronic sensor faults.

• Hydro Max 2-Range Hydrostatic Transmission (HST): Bad Boy’s Hydro Max dual-pedal drive delivers smooth, clutchless forward and reverse operation via side-by-side directional foot pedals. The internal hydraulic circuit provides automatic torque compensation under heavy loader digging, allowing the operator to feather speed down to a crawl for millimetric accuracy around fence posts, raised garden beds, and building foundations.

• Selectable 4WD, Rear Differential Lock & Wet Multi-Disc Brakes: Push-lever four-wheel drive paired with a mechanical foot-engaged rear differential lock locks both rear drive wheels simultaneously to claw through wet glacial clay, soggy horse paddocks, and steep gravel driveway grades. Fully enclosed internal wet multi-disc brakes provide reliable, maintenance-free stopping power completely sealed away from grit, mud, and water.

• Dual Hydraulic Pump System (6.8 GPM Total Flow): Built with two dedicated hydraulic circuits—4.4 GPM for implement and backhoe hydraulics and a separate 2.4 GPM pump for hydrostatic power steering. This dual-circuit design ensures responsive loader cycle times and smooth backhoe boom functions without robbing power or steering responsiveness when maneuvering in tight spots.

• Solid Cast-Iron Front & Rear Axles: Heavy-duty bevel gear front axle assemblies and robust cast-iron transmission cases absorb heavy loader and backhoe stress, resisting the front-axle bending and housing cracks common on lighter aluminum-transaxle machines.

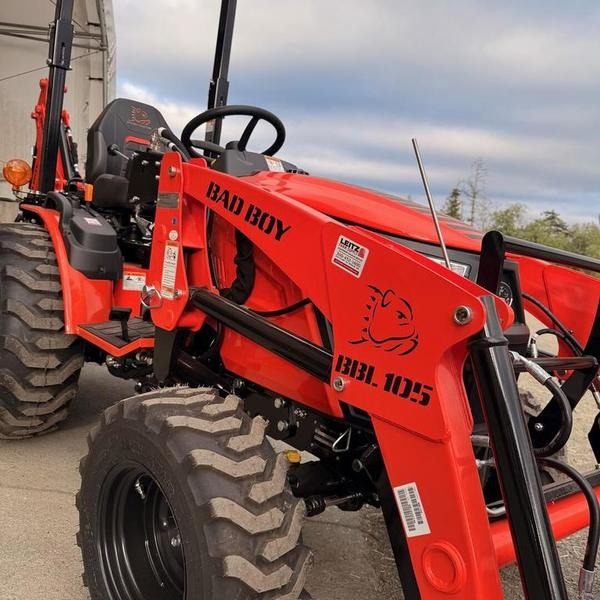

Heavy-Duty BBL105 Front-End Loader Specifications

The factory-matched Bad Boy BBL105 Front Loader is engineered with heavy structural box-channel lift arms, protected hydraulic hard lines, greaseable pivot pins, an integrated mechanical bucket level indicator, and an ergonomic joystick control integrated directly into the operator console:

• Maximum Lift Capacity to Pivot Pins: 992 lbs (Class-leading front-end payload capacity)

• Maximum Lift Height to Pivot Pins: 71.3 inches (Easily loads pickup beds, dump trailers, and high compost piles)

• Breakout Force at Pivot Pins: 1,323 lbs (Pries out hard-packed clay, wet manure, and embedded roots)

• Clearance with Bucket Dumped (45°): 53.9 inches

• Maximum Dump Angle: 45 degrees

• Maximum Rollback Angle: 29 degrees

• Standard Bucket: 48-inch Heavy-Duty Material Bucket with Welded Cutting Edge

• Mounting Standard: Universal Skid Steer Quick-Attach (SSQA) faceplate for one-minute tool changes between the standard bucket, pallet forks, front snow plows, and light-duty brush grapples.

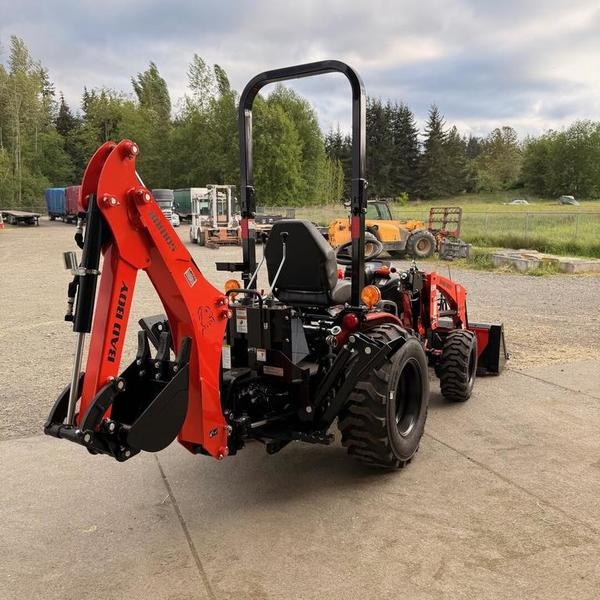

Factory-Integrated Subframe Quick-Detach Backhoe Performance

Unlike light aftermarket 3-point hitch backhoes that stress the tractor’s top link and crack aluminum transmission housings, the Bad Boy 1025 factory backhoe is anchored to a heavy full-length structural subframe that transfers digging stresses directly into the tractor's cast chassis:

• Maximum Digging Depth: Approximately 72.0 inches (6 feet) to clear water lines, French drains, and foundation footings

• Reach from Swing Pivot: Approximately 90+ inches of ground reach

• Swing Arc: Full 140-to-180-degree hydraulic swing arc with dual swing cylinders for smooth side trenching

• Stabilizer Spread: Wide down-position hydraulic stabilizer legs provide a rock-solid, stable digging footprint on slopes and uneven ground

• Digging Bucket: Heavy-duty trenching bucket with replaceable wear teeth

• Mounting System: Dedicated Subframe Quick-Mount (Easily detaches in roughly 10 minutes to free the rear 3-point hitch for mowing and tilling)

Category I Rear 3-Point Hitch & Independent 540 Rear / Mid PTO

When the backhoe is dismounted, the 1025 HILB converts into an agile agricultural tractor ready to run standard Category I implements:

• 3-Point Hitch Lift Capacity at Ball Ends: 1,102 lbs (700+ lbs at 24 inches behind pins)

• Hitch Category & Adjustability: Standard Category I 3-point hitch featuring turnbuckle lift stabilizers and adjustable leveling links to align rear implements quickly.

• Independent Rear PTO: Push-button electric-over-hydraulic independent 540 RPM PTO delivering 18.0 continuous PTO horsepower to spin 48-inch rotary cutters (brush hogs), 48-inch reverse-rotation tillers, 6-inch to 9-inch post-hole augers, and 3-point wood chippers.

• Available 2,500 RPM Mid-PTO: Independent mid-PTO ready to drive an optional 54-inch or 60-inch drive-over commercial belly mower deck for clean residential estate finish mowing.

Key Technical Specifications

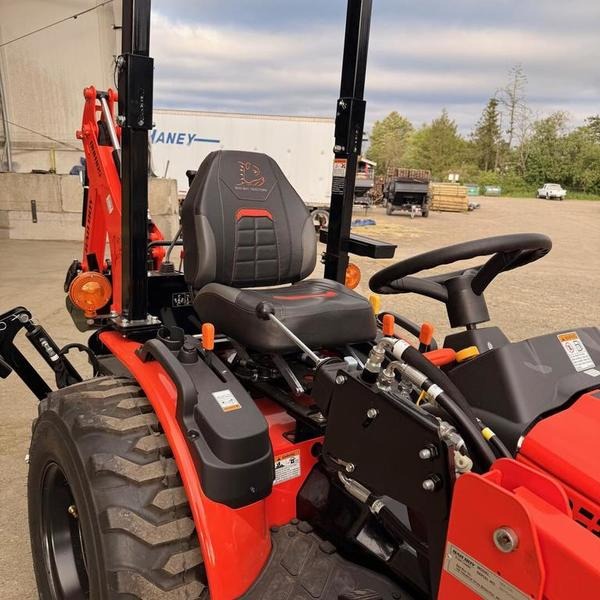

Operator Station Comfort & Worksite Hardware

• Spacious Flat-Deck Walkthrough Platform: Large unobstructed walkthrough floor with an anti-vibration rubber isolation mat prevents trip hazards and isolates the operator's feet and legs from engine harmonics.

• Contoured Reversible / High-Back Suspension Seat: Features built-in operator weight adjustment, retractable safety belt, and an easy-swivel or dedicated backhoe station to transition from loader driving to backhoe trenching in seconds.

• Integrated Console Loader Joystick: Positioned naturally alongside the right fender at armrest height, providing precise, single-lever dual-axis control with built-in loader float mode for back-dragging driveways.

• Worksite Utility Hardware: High-intensity front halogen headlights, rear work light mounting bracket, 12V auxiliary power socket, deep cup holder, sturdy steel fender grab handles, and a foldable Roll-Over Protective Structure (ROPS) that lowers in seconds to clear standard 7-foot garage doors and low orchard branches.

Real-World Pacific Northwest Property & Acreage Applications

• Trenching French Drains & Curtain Drains: Western Washington’s heavy rainfall demands active water management. The 6-foot digging backhoe digs clean trenches to install drainage pipes, footing drains, and culverts through rocky glacial soil without tearing up entire yards.

• Excavating Stumps & Footings: Pry out stubborn alder, cedar, and fir stumps, dig footings for outbuildings, and trench electrical or water lines to barns and shops.

• Driveway Maintenance & Trail Grading: Hook up a 48-inch box blade or land plane (with backhoe detached) to re-crown gravel driveways, scrape away winter washboard ripples, and pack out wet gravel trails without spinning tires.

• Moving Hog Fuel, Compost & Animal Manure: The 992 lb loader lift capacity effortlessly handles heaped buckets of wet bark mulch, saturated compost, and barn cleanings across muddy paddocks without tearing up surrounding grass.

• Firewood & Heavy Material Handling: Swap the standard bucket for SSQA pallet forks in under 60 seconds to transport heavy firewood totes, stacked fence posts, and landscape boulders across challenging terrain.

• Garden Bed Preparation & Soil Conditioning: Dismount the backhoe, engage the independent 540 PTO, and power a 48-inch rotary tiller to break hardpan soil, incorporate organic compost, and prepare seedbeds for spring planting.

Property-Size & Landowner Fit

• Up to 2 Acres (The Sweet Spot): The primary operating zone for the Bad Boy 1025 HILB. It delivers full excavation, loading, and mowing capabilities in a footprint that maneuvers through garden gates, navigates tight wooded homesteads, and stores in a standard residential garage.

• 2 to 5 Acres: Excellent as an agile, all-around utility tool for trenching ditch lines, repairing culverts, maintaining horse paddocks, and landscaping around homes and shops.

• 5+ Acres: Outstanding as a dedicated close-quarters digging and trim machine. For open, multi-acre pastures or heavy land clearing, pairing the 1025 HILB with a larger 40–50 HP tractor (such as the Bad Boy 4025 or 5045 HILB) provides the ultimate two-machine fleet.

Olympic Peninsula & Western Washington Geographic Relevance

Operating equipment in Western Washington means tackling wet glacial soils, rocky hardpan, steep logging roads, and aggressive year-round vegetation:

• Sequim & Dungeness Valley: Ideal for irrigation ditch maintenance, small farm trenching, equestrian arena footing grooming, and residential landscaping across the Dungeness farming flats.

• Port Angeles, Joyce & Foothill Acreage: The heavy 2,800+ lb operating weight, low center of gravity, and 4WD traction provide the necessary hillside stability and drawbar pull to maintain terraced properties and rough timber-fringe homesteads.

• Forks, Beaver, Clallam Bay & Neah Bay: In the West End's 100+ inches of annual rainfall, the fully sealed wet-disc brakes, enclosed hydrostatic drive, and DPF-free Yanmar diesel ensure uninterrupted operation through saturated winter conditions without electrical filter failures.

• Port Townsend, Chimacum & Quilcene: The ideal compact machine for historic East Jefferson County homesteads, small cideries, and specialty farms needing a machine small enough to park in a carriage house but strong enough to dig water lines, lift pallets of feed, and grade driveways.

• Kitsap, Mason & Grays Harbor Counties (Poulsbo, Silverdale, Bremerton, Kingston, Shelton & Aberdeen): Delivers rural property owners the digging muscle and gravel grading performance needed for homesites, shop construction pads, and wooded acreage maintenance.

Competitive Field Comparisons: Sub-Compact TLB Packages

Acreage owners evaluating the sub-compact tractor loader backhoe category frequently cross-shop the Kubota BX23S, John Deere 1025R TLB, and Kioti CS2220 / CS2520 TLB:

• Versus Kubota BX23S: The Kubota BX23S uses a proprietary front loader pin-on or specialized quick-attach system. The Bad Boy 1025 HILB comes standard with a Universal Skid Steer Quick-Attach (SSQA) faceplate, allowing instant compatibility with thousands of commercial attachments. Additionally, the 1025 HILB delivers a higher front-loader lift capacity (992 lbs vs. approx. 740 lbs on the BX23S).

• Versus John Deere 1025R TLB: The John Deere 1025R relies on proprietary John Deere-specific loader attachments and utilizes an aluminum-case rear transmission. The Bad Boy 1025 HILB features a heavy cast-iron chassis, standard universal SSQA loader mounting, and standard metal hood and fenders that will not crack or fade when brushing against blackberry thorns.

• Versus Kioti CS2520 TLB: While Kioti builds a rugged machine, the Bad Boy 1025 HILB features the world-renowned Yanmar diesel powertrain, more spacious walkthrough deck ergonomics, and dual side-by-side Hydro Max directional foot pedals for smoother forward/reverse shuttle transitions.

Frequently Asked Questions

Does the Bad Boy 1025 HILB require DPF filters or DEF fluid?

No. Because the Yanmar 3-cylinder diesel engine is rated at 24.6 gross horsepower, it meets EPA Tier 4 Final standards without requiring a Diesel Particulate Filter (DPF) or Diesel Exhaust Fluid (DEF). You never have to deal with automated regeneration burn cycles, clogged soot filters, or DEF tank maintenance.

Can the backhoe be removed to use 3-point hitch implements?

Yes. The factory backhoe is mounted to a quick-detach subframe. In roughly 10 minutes, you can dismount the backhoe assembly using its hydraulic stabilizers and boom, connect the included Category I 3-point hitch arms, and run rotary cutters, tillers, box blades, or post-hole diggers.

What is the lift capacity of the BBL105 front-end loader?

The Bad Boy BBL105 front loader delivers a class-leading 992 lb lift capacity at the pivot pins to a maximum height of 71.3 inches, along with 1,323 lbs of breakout force to dig into packed gravel and dense clay.

What attachments fit the front loader?

The loader comes standard with a Universal Skid Steer Quick-Attach (SSQA) faceplate. Any standard SSQA attachment—including pallet forks, front snow plows, round bale spears, and hydraulic brush grapples—locks in place in under a minute with dual over-center cam levers.

Can I install a drive-over belly mower deck on the 1025 HILB?

Yes. The 1025 HILB can be equipped with an independent mid-PTO that powers an optional 54-inch or 60-inch commercial-style drive-over mid-mount mower deck for high-capacity lawn manicuring when the backhoe is not in use.

What size trailer do I need to haul the 1025 HILB?

A standard 6-foot-wide by 14-foot-long or 16-foot-long tandem-axle utility trailer (7,000 lb GVWR minimum) is recommended to safely accommodate the tractor, loader, and backhoe assembly.

Can Leitz Farm Supply install Rim Guard liquid ballast in the rear tires?

Yes. As an authorized Rim Guard dealer, Leitz Farm Supply installs non-toxic, non-corrosive Rim Guard "Beet Juice" liquid tire ballast directly into the rear tires, adding approximately 200 to 250+ lbs of low-center-of-gravity weight for maximum loader counterweight and traction.

Dealership Support, Commercial Financing & Flatbed Delivery

At Leitz Farm Supply & Equipment Sales, we support your machinery with factory-trained technicians and comprehensive dealer services:

• Comprehensive Pre-Delivery Inspection (PDI): Every tractor goes through an exhaustive multi-point checklist: hydraulic pressures verified, loader and backhoe pins greased, wheel lugs torqued to specification, transmission linkages calibrated, and fluid levels topped.

• Competitive Low-Rate Financing & Cash Discounts: Take advantage of competitive low-rate APR financing programs, flexible terms, or instant cash-in-lieu discounts on approved credit.

• Trade-Ins Welcome: Top-dollar trade valuations for your used Kubota BX, John Deere 1-Series, LS Tractor, Kioti, or lawn tractor.

• Certified Service & In-Stock Parts: Full factory-authorized warranty center staffed by factory-trained diesel and hydraulic technicians with genuine Yanmar and Bad Boy filters, hydraulic hoses, and hardware in stock.

• Direct Flatbed Delivery: Scheduled direct flatbed delivery throughout Clallam and Jefferson counties directly to your property or jobsite.

Visit Leitz Farm Supply & Equipment Sales at 259110 Hwy 101, Sequim, WA 98382 today, or submit an inquiry at LEITZFARMSUPPLY.com to inspect the 2026 Bad Boy 1025 HILB Sub-Compact Tractor Loader Backhoe in person and reserve yours.
