2026 Bad Boy 5045 HILB 48 HP Tractor Loader Backhoe (TLB) For Sale — Sequim, WA & Olympic Peninsula

The new 2026 Bad Boy 5045 HILB 48 HP Compact Utility Tractor Loader Backhoe (TLB Package) is an industrial-duty, cast-iron workhorse engineered specifically for cattle ranches, commercial dirt contractors, drainage operations, forestry homesteads, and multi-acre farms across the Pacific Northwest. Available now at Leitz Farm Supply & Equipment Sales in Sequim, Washington, this turnkey package combines a high-torque 48.0 gross HP 4-cylinder liquid-cooled diesel engine with Bad Boy’s advanced Hydro Max hydrostatic transmission, the heavy-lifting BBL500 front-end loader, and the subframe-integrated BBH500 commercial backhoe.

While lightweight utility tractors in the 45-to-50 HP segment rely on light aluminum transmission casings, stamped brackets, and light bare weights that spin tires under heavy draft loads, the Bad Boy 5045 HILB is built on a heavy-gauge structural steel and cast-iron foundation. Tipping the scales at 3,831 lbs bare and scaling over 6,400 lbs fully outfitted with the loader, factory backhoe, and rear fluid ballast, this machine provides the low center of gravity and planted ground-hugging mass needed to trench through rocky glacial till, lift full pallets of seed or round bales, and navigate steep, slick logging trails without wheel slip or front-end lightness. For landowners and operators throughout Clallam, Jefferson, Kitsap, Mason, and Grays Harbor counties, the 5045 HILB delivers true commercial-grade digging performance, class-leading front loader capacities, and multi-range hydraulic efficiency. Every tractor package at Leitz Farm Supply includes a comprehensive factory pre-delivery inspection (PDI), 50-point hydraulic check, fully calibrated linkage, fluids topped, and factory-authorized warranty backing from our certified Sequim dealership.

Heavy-Duty Powertrain, Hydro Max HST & Cast-Iron Chassis Architecture

• 48.0 Gross HP 4-Cylinder Liquid-Cooled Diesel Engine: Powered by an EPA Tier 4 Final compliant, 4-cylinder water-cooled industrial diesel engine, the 5045 HILB produces 48.0 gross horsepower and 38.4 continuous PTO horsepower at 2,600 RPM. Engineered with high low-end torque output, this clean-burning diesel powers through heavy rotary mowing, deep trenching, and steep-grade box scraping without stalling or losing hydraulic flow.

• Hydro Max 3-Range Hydrostatic Transmission (HST): Bad Boy’s Hydro Max transmission delivers smooth, clutchless operation using ergonomic side-by-side directional foot pedals. Featuring automated engine-RPM torque compensation under heavy loader digging, the Hydro Max HST maintains continuous hydraulic pump pressure and forward momentum when driving the bucket into compacted gravel piles or hardpan soil.

• Selectable 4WD, Rear Differential Lock & Wet Multi-Disc Brakes: Push-button or lever-activated four-wheel drive paired with a mechanical foot-engaged rear differential lock locks both rear drive wheels simultaneously to claw through thick Olympic Peninsula mud, wet pasture clay, and steep gravel banks. Fully sealed internal wet multi-disc brakes provide long service life and sure stopping power protected from grit, water, and debris.

• Dual Hydraulic Pump System (15.7 GPM Total Flow): Built with two dedicated hydraulic pumps—a 10.7 GPM implement pump and a separate 5.0 GPM power steering pump. This independent dual-circuit architecture ensures lightning-fast loader cycle times and responsive backhoe trenching without robbing power or responsiveness from the power steering during tight maneuvering.

• Industrial Cast-Iron Axles & Heavy Chassis Weight: The solid cast-iron front and rear axle housings, structural cast clutch housing, and heavy-gauge steel subframe create a 3,831-lb bare foundation. This mass delivers superior drawbar pull, ground traction, and front-axle stability when handling heavy front-end loader loads over uneven pasture.

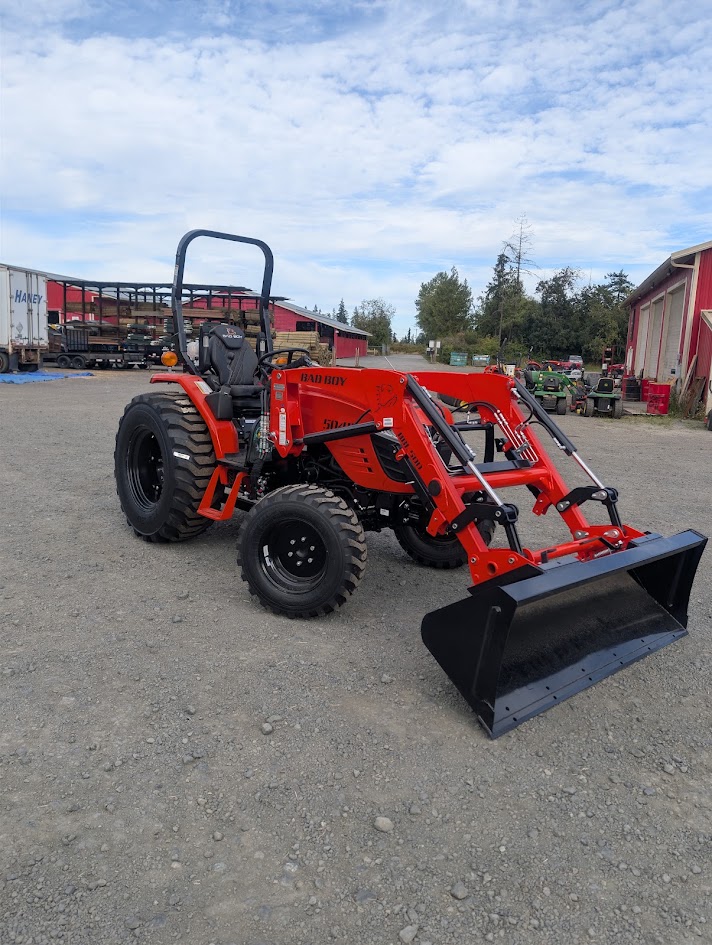

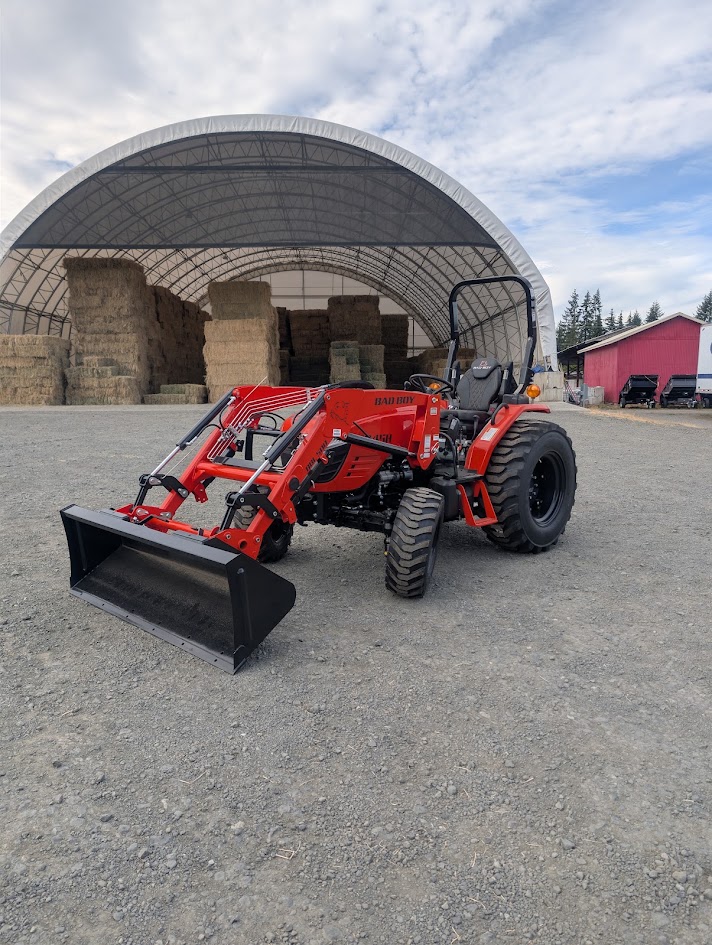

Commercial-Grade BBL500 Front-End Loader Specifications

The factory-matched Bad Boy BBL500 Front-End Loader is built with heavy-wall rectangular box-channel lift arms, internal grease passages, integrated mechanical bucket level indicators, and an armrest-level ergonomic single-lever joystick with built-in float mode:

• Maximum Lift Capacity to Pivot Pins: 2,700 lbs (Class-Dominating)

• Maximum Lift Height to Pivot Pins: 106.6 inches (Easily loads high-sided tandem-axle dump trailers and farm flatbeds)

• Breakout Force at Pivot Pins: 3,660 lbs (Tears out packed pit-run gravel, clay, and embedded rock)

• Clearance with Bucket Dumped: 83.1 inches

• Maximum Dump Angle: 45 degrees

• Maximum Rollback Angle: 35 degrees

• Standard Bucket: 72-inch Heavy-Duty Material Bucket with Welded Cutting Edge

• Mounting Standard: Universal Skid Steer Quick-Attach (SSQA) for one-minute changeovers between buckets, pallet forks, bale spears, and hydraulic brush grapples.

Subframe-Mounted BBH500 Factory Backhoe Specifications

Unlike aftermarket 3-point hitch backhoes that stress the tractor’s top link and crack aluminum transmission housings, the Bad Boy BBH500 Backhoe is anchored to a heavy full-length structural subframe that transfers digging stresses directly into the tractor's cast chassis:

• Maximum Digging Depth: 91.2 inches (7 feet, 7.2 inches)

• Reach from Swing Pivot Center: 123.6 inches

• Loading Height (Bucket at 60°): 78.0 inches

• Swing Arc: Full 180-Degree Hydraulic Swing with Dual Swing Cylinders

• Bucket Rotation: 151 degrees

• Stabilizer Spread (Down Position): 88.8 inches (Provides a rock-solid, ultra-wide digging footprint on slopes)

• Stabilizer Spread (Up Position): 56.4 inches

• Digging Bucket: 16-inch Heavy-Duty Excavating Bucket with Replaceable Cast Teeth

• Mounting System: Dedicated Subframe Quick-Mount (Easily detaches in minutes to free the rear 3-point hitch for mowing and tilling)

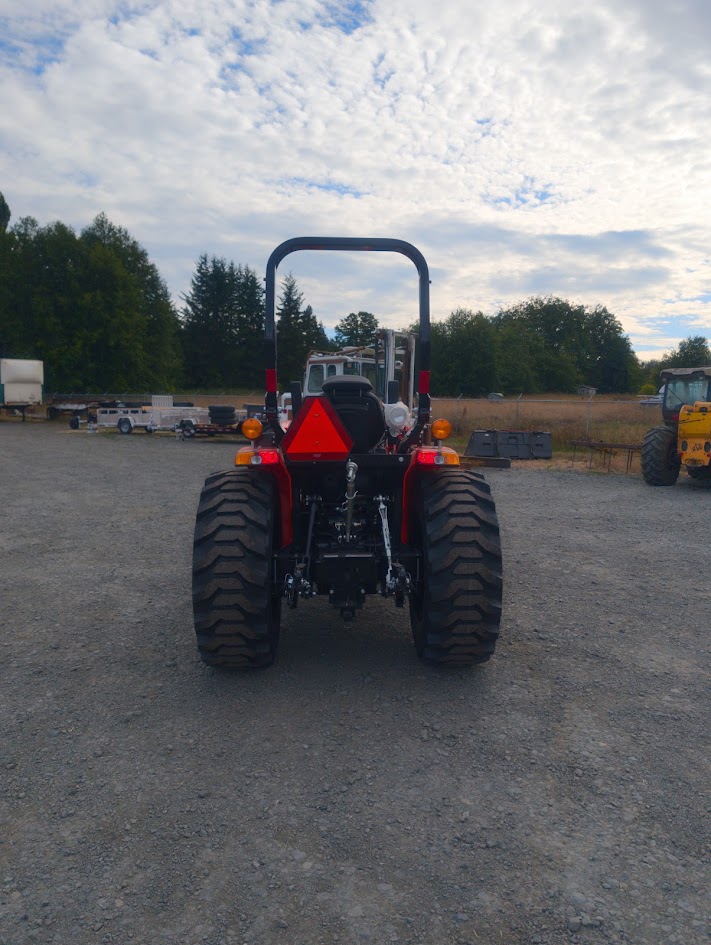

Heavy-Duty Category I 3-Point Hitch & Dual-Speed 540/540E Independent PTO

When the BBH500 backhoe is dismounted, the 5045 HILB converts into an agile agricultural tractor ready to run full-sized Category I implements:

• 3-Point Hitch Lift Capacity at Ball Ends: 3,306 lbs (2,425 lbs at 24 inches behind pins)

• Hitch Adjustability: Heavy telescopic draft link ends and crank-adjustable lateral stabilizers for fast, one-man implement alignment.

• Independent Rear PTO: Push-button electro-hydraulic independent engagement with 540 RPM and 540E (Economy) modes.

• 38.4 Continuous PTO Horsepower: Powers 6-foot heavy-duty rotary cutters (brush hogs), 72-inch reverse-rotation rotary tillers, heavy flail shredders, 12-inch post-hole augers, and 5-inch commercial wood chippers.

• Fuel-Saving 540E Mode: Run light-duty PTO implements (finish mowers, seed spreaders, light sprayers) at full 540 PTO speed while throttling the engine down, cutting diesel fuel consumption and reducing cab/station noise.

Key Technical Specifications

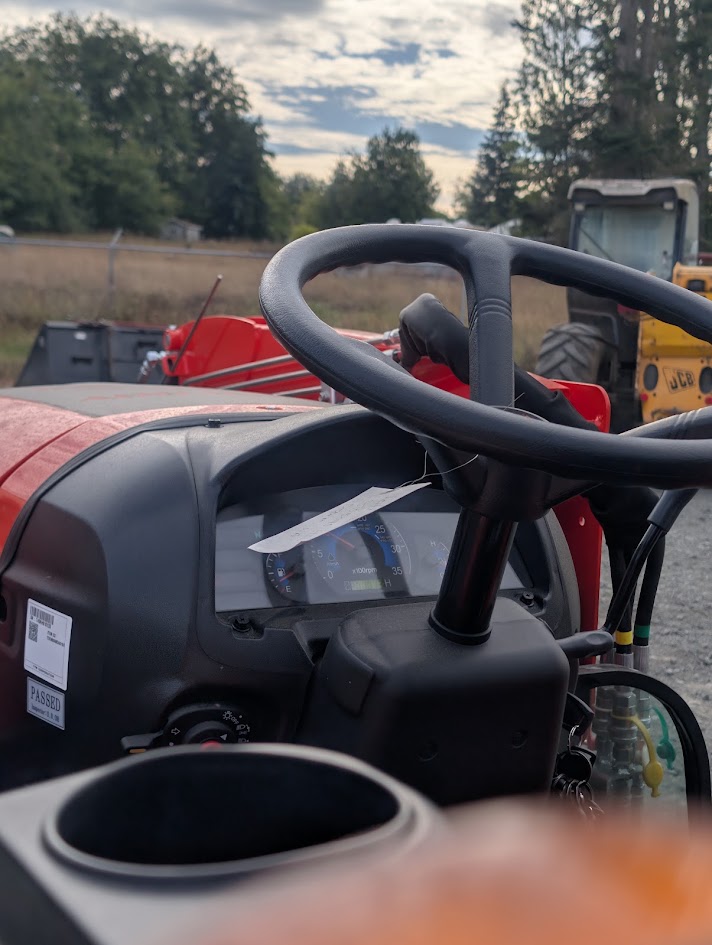

Operator Station Comfort & Worksite Hardware

• Spacious Flat-Deck Walkthrough Platform: Large unobstructed walkthrough floor with an anti-vibration rubber isolation mat prevents trip hazards and isolates the operator's feet and legs from engine harmonics.

• Deluxe Adjustable Suspension Seat: Equipped with mechanical weight adjustment, reclining backrest, retractable seat belt, and fold-up armrests to prevent lower-back fatigue during grueling 10-hour trenching or grading shifts.

• Ergonomic Controls & Tilt Steering: Fully adjustable tilt steering wheel, color-coded hydraulic and range levers, and an armrest-height loader joystick provide intuitive, fatigue-free operation.

• Worksite Utility Hardware: High-intensity front headlights, rear work light, 12V auxiliary power socket, integrated cup holder, steel rear grab handles, and a heavy-duty foldable Roll-Over Protective Structure (ROPS) that lowers quickly to clear 7-foot garage doors and shop entries.

Real-World Pacific Northwest Ranch & Land Management Applications

• Trenching Drainage & French Drains: Western Washington’s heavy rainfall demands active water management. The BBH500 backhoe digs 7' 7" deep trenches to install curtain drains, footing drains, and perforated culverts through rocky glacial till and stubborn hardpan.

• Stump Removal & Root Excavation: Easily excavate, pry, and pop out dense alder, cedar, and fir stumps that would stall smaller compact backhoes, utilizing the 3,660 lb loader breakout force and aggressive backhoe curl to clear timber perimeters.

• Heavy Dirt, Pit-Run Gravel & Rock Transport: The class-leading 2,700 lb loader capacity easily scoops and lifts heaped buckets of 1-1/4" crushed rock, topsoil, and quarry spalls to crown long rural driveways and build level equipment pads.

• Hay Stacking & Feed Bunk Management: Effortlessly moves and stacks 1,200 lb round hay bales two-high on trailers or hauls full 2,000 lb pallet loads of calf feed, alfalfa pellets, and wood pellets across muddy barnyards using SSQA pallet forks.

• Pasture Reclamation & Brush Cutting: Dismount the backhoe and pin on a 6-foot heavy-duty rotary cutter to chop through dense Scotch broom, Himalayan blackberry thickets, and overgrown pasture grass with 38.4 continuous PTO horsepower.

• Equine Arena Maintenance & Grading: Hook up a 72-inch box blade or land plane to dress equestrian arenas, repair winter pothole washouts, and grade logging trails.

Competitive Field Comparisons: 45–50 HP Compact TLB Packages

Ranchers and contractors evaluating the 45–50 HP Tractor Loader Backhoe category frequently compare the Kubota L47 / L4802, John Deere 4044M / 4052M, Kioti DK4720 / DK5320, and LS MT347 / MT352:

• Versus Kubota L47 / L4802: The Kubota L-Series is a well-known machine, but the Bad Boy 5045 HILB delivers a substantially higher front-loader lift capacity (2,700 lbs vs. approx. 1,700–2,200 lbs on comparable Kubota loaders) and a deeper standard backhoe reach, backed by a heavier structural steel frame that eliminates rear-wheel lifting without needing excessive rear wheel weights.

• Versus John Deere 4044M / 4052M: John Deere utilizes aluminum rear axle/transmission housings on several mid-chassis platforms and charges heavily for basic hydraulic features. The Bad Boy 5045 HILB comes fully equipped with a solid cast-iron chassis, standard dual rear remotes, universal SSQA loader mounting, and independent 540/540E dual-speed PTO standard.

• Versus Kioti DK4720: While Kioti builds a rugged tractor, the Bad Boy 5045 HILB provides superior subframe backhoe mounting geometry, faster cycle times via its 15.7 GPM total hydraulic flow, and the intuitive Hydro Max automated torque-compensation transmission system.

• Versus LS MT347: Built on a proven global powertrain architecture, the Bad Boy 5045 HILB adds Bad Boy’s distinct heavy-wall structural front grille guard, upgraded commercial suspension seating, and nationwide heavy-duty equipment support.

Olympic Peninsula & Western Washington Geographic Relevance

Operating heavy equipment west of the Cascades presents unique challenges: wet clay soils, steep gravel slopes, glacial river rocks, and rapid maritime vegetation growth:

• Sequim & Dungeness Valley: Ideal for irrigation canal cleaning, hobby farm management, equestrian arenas, and ditch drainage work across the Dungeness farming flats.

• Port Angeles, Joyce & Foothill Ranches: The heavy 6,400+ lb operating weight and 4WD traction provide the necessary hillside stability and drawbar pull to maintain terraced properties and rough logging-fringe acreage.

• Forks, Beaver, Clallam Bay & Neah Bay: In the West End's 100+ inches of annual rainfall, the sealed wet-disc brakes, enclosed hydrostatic drive, and deep-digging backhoe keep culverts clear, logging roads ditch-carved, and mud under control.

• Port Townsend, Chimacum & Quilcene: The ideal all-in-one machine for historic East Jefferson County farms, cideries, and homesteads needing a single platform to excavate building sites, turn compost windrows, and brush-hog overgrown fields.

• Kitsap, Mason & Grays Harbor Counties (Poulsbo, Silverdale, Bremerton, Shelton, Elma & Aberdeen): Delivers contractor-grade digging performance and high-capacity gravel hauling for rural homesites, shop construction pads, and forest-thinning cleanups.

Frequently Asked Questions

Does the Bad Boy 5045 HILB require Diesel Exhaust Fluid (DEF)?

No. The 48 HP liquid-cooled 4-cylinder diesel engine meets EPA Tier 4 Final emissions regulations without requiring Diesel Exhaust Fluid (DEF). There is no DEF tank to fill, freeze, or maintain.

How much can the BBL500 front loader lift?

The Bad Boy BBL500 front loader boasts a class-dominating 2,700 lb lift capacity at the pivot pins to a maximum height of 106.6 inches, backed by an aggressive 3,660 lb breakout force to dig into packed soil and pit-run gravel.

What is the maximum digging depth of the BBH500 backhoe?

The factory subframe-mounted BBH500 backhoe delivers a maximum digging depth of 91.2 inches (7 feet, 7.2 inches) with a ground reach of 123.6 inches and a full 180-degree hydraulic swing arc.

Can the backhoe be removed to use 3-point hitch implements?

Yes. The BBH500 is a dedicated quick-detach subframe backhoe. In roughly 10 to 15 minutes, you can dismount the backhoe assembly using its built-in hydraulic stabilizers and boom, connect the included Category I 3-point hitch arms, and run rotary cutters, tillers, box blades, or post-hole diggers.

What attachments fit the front loader?

The BBL500 comes standard with a Universal Skid Steer Quick-Attach (SSQA) mounting faceplate. Any standard skid-steer attachment—including pallet forks, round bale spears, hydraulic root grapples, snow pushers, and post drivers—locks on instantly with dual over-center cam levers.

Can Leitz Farm Supply add Rim Guard liquid ballast to the rear tires?

Yes. As an authorized Rim Guard dealer, Leitz Farm Supply installs non-toxic, non-corrosive Rim Guard "Beet Juice" liquid tire ballast directly into the rear tires, adding 700 to 1,000+ lbs of low-center-of-gravity ballast to maximize traction and loader counterbalance.

Dealership Support, Commercial Financing & Flatbed Delivery

At Leitz Farm Supply & Equipment Sales, we don't just sell equipment—we support your ranch and business operations for the life of the machine:

• Comprehensive Pre-Delivery Inspection (PDI): Every tractor goes through an exhaustive 50-point checklist: hydraulic pressures tested, loader/backhoe pins lubricated, wheel lugs torqued, transmission linkages calibrated, and all fluid reservoirs topped.

• Competitive Low-Rate Financing & Cash Discounts: Take advantage of low-rate APR financing up to 84 months, flexible seasonal payment structures, or instant cash-in-lieu discounts on approved credit.

• Trade-Ins Welcome: Top-dollar trade valuations for your used Kubota, John Deere, LS Tractor, Kioti, Yanmar, or Mahindra tractor or equipment.

• Certified Service & In-Stock Parts: Full factory-authorized warranty center staffed by factory-trained diesel and hydraulic technicians with genuine Bad Boy filters, hydraulic hoses, cutting edges, and replacement bucket teeth in stock.

• Direct Flatbed Delivery: Scheduled direct flatbed delivery throughout Clallam, Jefferson, Kitsap, Mason, and Grays Harbor counties directly to your property or jobsite.

Visit Leitz Farm Supply & Equipment Sales at 259110 Hwy 101, Sequim, WA 98382 today, or submit an inquiry at LEITZFARMSUPPLY.com to inspect the 2026 Bad Boy 5045 HILB Tractor Loader Backhoe package in person and reserve yours.
